Acronym gixhi
Name great hexacosihecatonicosachoron

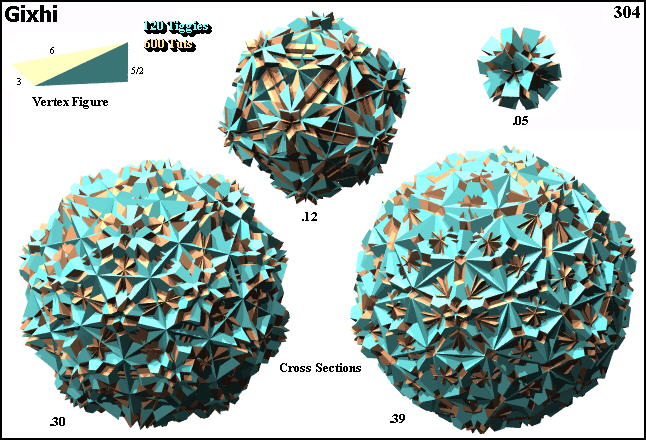

Cross sections
 ©
Circumradius sqrt[(59-25 sqrt(5))/2] = 1.244649
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: tiggy tut
gixhi 120600
)
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope gixhi is isomorphic to xhi, thereby replacing the pentagrams by pentagons, resp. replacing tiggy by ti.


Incidence matrix according to Dynkin symbol

o3x3x5/2o

. . .   . | 3600 |    2    2 |    1    4   1 |   2   2
----------+------+-----------+---------------+--------
. x .   . |    2 | 3600    * |    1    2   0 |   2   1
. . x   . |    2 |    * 3600 |    0    2   1 |   1   2
----------+------+-----------+---------------+--------
o3x .   . |    3 |    3    0 | 1200    *   * |   2   0
. x3x   . |    6 |    3    3 |    * 2400   * |   1   1
. . x5/2o |    5 |    0    5 |    *    * 720 |   0   2
----------+------+-----------+---------------+--------
o3x3x   .    12 |   12    6 |    4    4   0 | 600   *
. x3x5/2o    60 |   30   60 |    0   20  12 |   * 120

o3x3x5/3o

. . .   . | 3600 |    2    2 |    1    4   1 |   2   2
----------+------+-----------+---------------+--------
. x .   . |    2 | 3600    * |    1    2   0 |   2   1
. . x   . |    2 |    * 3600 |    0    2   1 |   1   2
----------+------+-----------+---------------+--------
o3x .   . |    3 |    3    0 | 1200    *   * |   2   0
. x3x   . |    6 |    3    3 |    * 2400   * |   1   1
. . x5/3o |    5 |    0    5 |    *    * 720 |   0   2
----------+------+-----------+---------------+--------
o3x3x   .    12 |   12    6 |    4    4   0 | 600   *
. x3x5/3o    60 |   30   60 |    0   20  12 |   * 120

o3/2x3x5/2o

.   . .   . | 3600 |    2    2 |    1    4   1 |   2   2
------------+------+-----------+---------------+--------
.   x .   . |    2 | 3600    * |    1    2   0 |   2   1
.   . x   . |    2 |    * 3600 |    0    2   1 |   1   2
------------+------+-----------+---------------+--------
o3/2x .   . |    3 |    3    0 | 1200    *   * |   2   0
.   x3x   . |    6 |    3    3 |    * 2400   * |   1   1
.   . x5/2o |    5 |    0    5 |    *    * 720 |   0   2
------------+------+-----------+---------------+--------
o3/2x3x   .    12 |   12    6 |    4    4   0 | 600   *
.   x3x5/2o    60 |   30   60 |    0   20  12 |   * 120

o3/2x3x5/3o

.   . .   . | 3600 |    2    2 |    1    4   1 |   2   2
------------+------+-----------+---------------+--------
.   x .   . |    2 | 3600    * |    1    2   0 |   2   1
.   . x   . |    2 |    * 3600 |    0    2   1 |   1   2
------------+------+-----------+---------------+--------
o3/2x .   . |    3 |    3    0 | 1200    *   * |   2   0
.   x3x   . |    6 |    3    3 |    * 2400   * |   1   1
.   . x5/3o |    5 |    0    5 |    *    * 720 |   0   2
------------+------+-----------+---------------+--------
o3/2x3x   .    12 |   12    6 |    4    4   0 | 600   *
.   x3x5/3o    60 |   30   60 |    0   20  12 |   * 120
