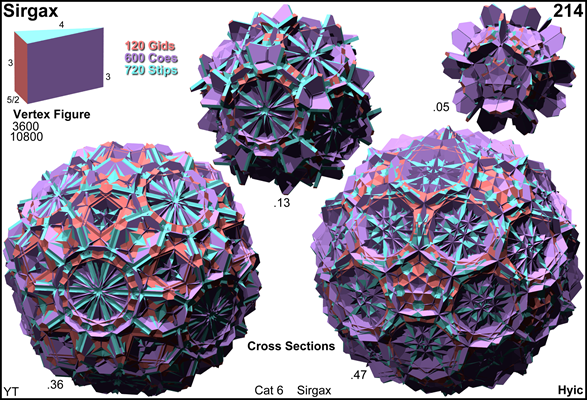

Acronym sirgax
Name small rhombated grand hexacosachoron
Circumradius sqrt[19-8 sqrt(5)] = 1.054256
Colonel of regiment (is itself locally convex – uniform polychoral members:
by cells: co gid oho stip tiggy
sirgax 60012007200
garawv hixhi 01206000120
& others)
Face vector 3600, 10800, 8640, 1440
Confer
general polytopal classes:
Wythoffian polychora
External
links
hedrondude   polytopewiki   WikiChoron

As abstract polytope sirgax is isomorphic to srix, thereby replacing pentagrams by pentagons, resp. replacing gid by id and stip by pip.


Incidence matrix according to Dynkin symbol

x3o3x5/2o

. . .   . | 3600 |    2    4 |    1    4    2    2 |   2   2   1
----------+------+-----------+---------------------+------------
x . .   . |    2 | 3600    * |    1    2    0    0 |   2   1   0
. . x   . |    2 |    * 7200 |    0    1    1    1 |   1   1   1
----------+------+-----------+---------------------+------------
x3o .   . |    3 |    3    0 | 1200    *    *    * |   2   0   0
x . x   . |    4 |    2    2 |    * 3600    *    * |   1   1   0
. o3x   . |    3 |    0    3 |    *    * 2400    * |   1   0   1
. . x5/2o |    5 |    0    5 |    *    *    * 1440 |   0   1   1
----------+------+-----------+---------------------+------------
x3o3x   .    12 |   12   12 |    4    6    4    0 | 600   *   *
x . x5/2o    10 |    5   10 |    0    5    0    2 |   * 720   *
. o3x5/2o    30 |    0   60 |    0    0   20   12 |   *   * 120

x3o3x5/3o

. . .   . | 3600 |    2    4 |    1    4    2    2 |   2   2   1
----------+------+-----------+---------------------+------------
x . .   . |    2 | 3600    * |    1    2    0    0 |   2   1   0
. . x   . |    2 |    * 7200 |    0    1    1    1 |   1   1   1
----------+------+-----------+---------------------+------------
x3o .   . |    3 |    3    0 | 1200    *    *    * |   2   0   0
x . x   . |    4 |    2    2 |    * 3600    *    * |   1   1   0
. o3x   . |    3 |    0    3 |    *    * 2400    * |   1   0   1
. . x5/3o |    5 |    0    5 |    *    *    * 1440 |   0   1   1
----------+------+-----------+---------------------+------------
x3o3x   .    12 |   12   12 |    4    6    4    0 | 600   *   *
x . x5/3o    10 |    5   10 |    0    5    0    2 |   * 720   *
. o3x5/3o    30 |    0   60 |    0    0   20   12 |   *   * 120

x3/2o3/2x5/2o

.   .   .   . | 3600 |    2    4 |    1    4    2    2 |   2   2   1
--------------+------+-----------+---------------------+------------
x   .   .   . |    2 | 3600    * |    1    2    0    0 |   2   1   0
.   .   x   . |    2 |    * 7200 |    0    1    1    1 |   1   1   1
--------------+------+-----------+---------------------+------------
x3/2o   .   . |    3 |    3    0 | 1200    *    *    * |   2   0   0
x   .   x   . |    4 |    2    2 |    * 3600    *    * |   1   1   0
.   o3/2x   . |    3 |    0    3 |    *    * 2400    * |   1   0   1
.   .   x5/2o |    5 |    0    5 |    *    *    * 1440 |   0   1   1
--------------+------+-----------+---------------------+------------
x3/2o3/2x   .    12 |   12   12 |    4    6    4    0 | 600   *   *
x   .   x5/2o    10 |    5   10 |    0    5    0    2 |   * 720   *
.   o3/2x5/2o    30 |    0   60 |    0    0   20   12 |   *   * 120

x3/2o3/2x5/3o

.   .   .   . | 3600 |    2    4 |    1    4    2    2 |   2   2   1
--------------+------+-----------+---------------------+------------
x   .   .   . |    2 | 3600    * |    1    2    0    0 |   2   1   0
.   .   x   . |    2 |    * 7200 |    0    1    1    1 |   1   1   1
--------------+------+-----------+---------------------+------------
x3/2o   .   . |    3 |    3    0 | 1200    *    *    * |   2   0   0
x   .   x   . |    4 |    2    2 |    * 3600    *    * |   1   1   0
.   o3/2x   . |    3 |    0    3 |    *    * 2400    * |   1   0   1
.   .   x5/3o |    5 |    0    5 |    *    *    * 1440 |   0   1   1
--------------+------+-----------+---------------------+------------
x3/2o3/2x   .    12 |   12   12 |    4    6    4    0 | 600   *   *
x   .   x5/3o    10 |    5   10 |    0    5    0    2 |   * 720   *
.   o3/2x5/3o    30 |    0   60 |    0    0   20   12 |   *   * 120
