Acronym ticagirco, K-4.128
Name truncated cube atop great rhombicuboctahedron,
truncated-cubical cap of prismatorhombated hexadecachoron,
cuboctahedral supra-cap of small rhombated icositetrachoron

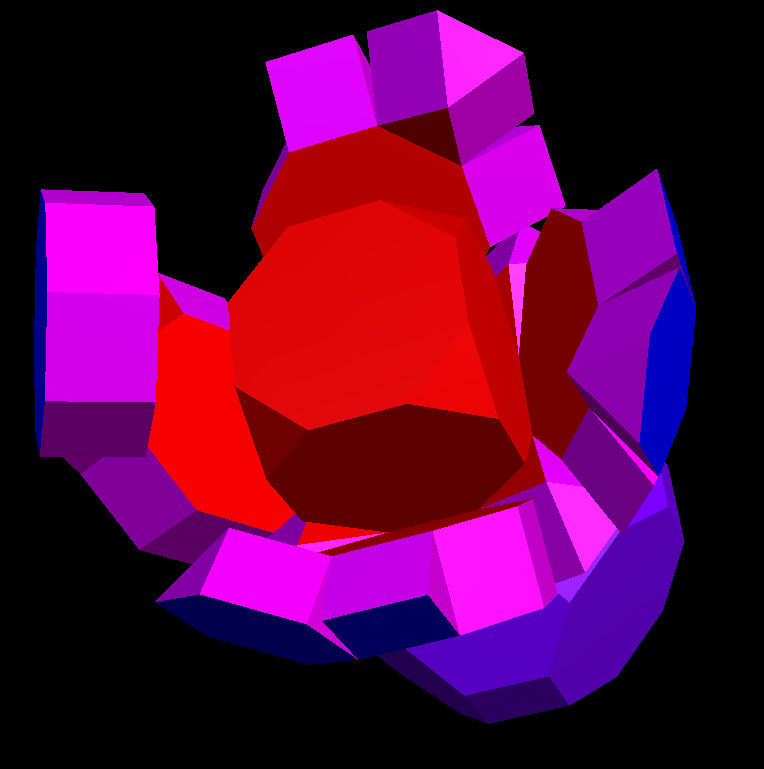

Segmentochoron display / VRML
 ⭳    ©
Circumradius sqrt[4+2 sqrt(2)] = 2.613126
Lace city
in approx. ASCII-art
    x4x w4o  w4o x4x

x4x x4u w4x  w4x x4u x4x

            x3x


o3x
            x3w


o3w            		with
               		X=2x+q=x+w

            u3w


x3w
            X3x

            x3X
w3x


            w3u


w3o


            w3x
x3o


            x3x
Dihedral angles
  • at {3} between tricu and trip:   150°
  • at {4} between op and trip:   arccos[-sqrt(2/3)] = 144.735610°
  • at {8} between op and tic:   135°
  • at {4} between op and tricu:   135°
  • at {3} between tic and tricu:   120°
  • at {6} between girco and tricu:   60°
  • at {4} between girco and trip:   arccos[1/sqrt(3)] = 54.735610°
  • at {8} between girco and op:   45°
Face vector 72, 156, 112, 28
Confer
uniform relatives:
proh   srico
related CRFs:
qo ox3xx4xx&#zx   wx ox3xx4xx&#zx
general polytopal classes:
segmentochora
External
links 		polytopewiki

As abstract polytope ticagirco is isomorphic to quithaquitco, thereby replacing octagons by octagrams, as well as tic by quith, op by stop, and girco by quitco.


Incidence matrix according to Dynkin symbol

ox3xx4xx&#x   → height = 1/sqrt(2) = 0.707107
(tic || girco)

o.3o.4o.    | 24  * |  2  1  2  0  0  0 | 1 2  1  2  2 0  0 0 | 1 1  1 2 0
.o3.o4.o    |  * 48 |  0  0  1  1  1  1 | 0 0  1  1  1 1  1 1 | 0 1  1 1 1
------------+-------+-------------------+---------------------+-----------
.. x. ..    |  2  0 | 24  *  *  *  *  * | 1 1  0  1  0 0  0 0 | 1 1  0 1 0
.. .. x.    |  2  0 |  * 12  *  *  *  * | 0 2  0  0  2 0  0 0 | 1 0  1 2 0
oo3oo4oo&#x |  1  1 |  *  * 48  *  *  * | 0 0  1  1  1 0  0 0 | 0 1  1 1 0
.x .. ..    |  0  2 |  *  *  * 24  *  * | 0 0  1  0  0 1  1 0 | 0 1  1 0 1
.. .x ..    |  0  2 |  *  *  *  * 24  * | 0 0  0  1  0 1  0 1 | 0 1  0 1 1
.. .. .x    |  0  2 |  *  *  *  *  * 24 | 0 0  0  0  1 0  1 1 | 0 0  1 1 1
------------+-------+-------------------+---------------------+-----------
o.3x. ..    |  3  0 |  3  0  0  0  0  0 | 8 *  *  *  * *  * * | 1 1  0 0 0
.. x.4x.    |  8  0 |  4  4  0  0  0  0 | * 6  *  *  * *  * * | 1 0  0 1 0
ox .. ..&#x |  1  2 |  0  0  2  1  0  0 | * * 24  *  * *  * * | 0 1  1 0 0
.. xx ..&#x |  2  2 |  1  0  2  0  1  0 | * *  * 24  * *  * * | 0 1  0 1 0
.. .. xx&#x |  2  2 |  0  1  2  0  0  1 | * *  *  * 24 *  * * | 0 0  1 1 0
.x3.x ..    |  0  6 |  0  0  0  3  3  0 | * *  *  *  * 8  * * | 0 1  0 0 1
.x .. .x    |  0  4 |  0  0  0  2  0  2 | * *  *  *  * * 12 * | 0 0  1 0 1
.. .x4.x    |  0  8 |  0  0  0  0  4  4 | * *  *  *  * *  * 6 | 0 0  0 1 1
------------+-------+-------------------+---------------------+-----------
o.3x.4x.    ♦ 24  0 | 24 12  0  0  0  0 | 8 6  0  0  0 0  0 0 | 1 *  * * *
ox3xx ..&#x ♦  3  6 |  3  0  6  3  3  0 | 1 0  3  3  0 1  0 0 | * 8  * * *
ox .. xx&#x ♦  2  4 |  0  1  4  2  0  2 | 0 0  2  0  2 0  1 0 | * * 12 * *
.. xx4xx&#x ♦  8  8 |  4  4  8  0  4  4 | 0 1  0  4  4 0  0 1 | * *  * 6 *
.x3.x4.x    ♦  0 48 |  0  0  0 24 24 24 | 0 0  0  0  0 8 12 6 | * *  * * 1
