Acronym sircope, K-4.66
Name small-rhombicuboctahedron prism,
medial (cube-first) subsegment of sidpith
Segmentochoron display / VRML
 ⭳

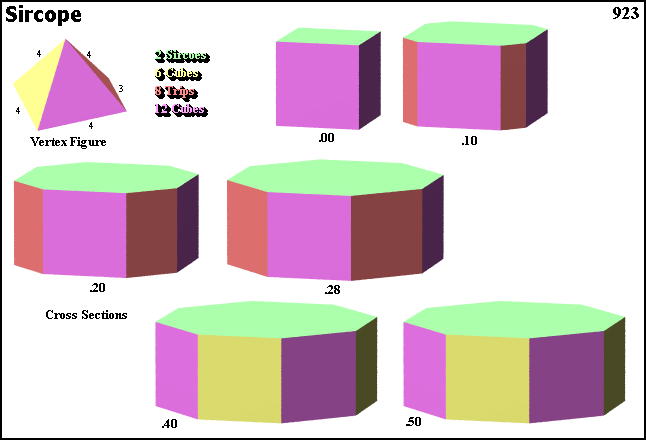

Cross sections
 ©
Circumradius sqrt[(3+sqrt(2))/2] = 1.485633
Lace city
in approx. ASCII-art
x4o  x4x    x4x  x4o



x4o  x4x    x4x  x4o
Coordinates (1+sqrt(2), 1, 1, 1)/2   & all permutations in all but last coord., all changes of sign
Volume [12+10 sqrt(2)]/3 = 8.714045
General of army (is itself convex)
Colonel of regiment (is itself locally convex – other uniform polyhedral members: soccope   srohp   & others)
Dihedral angles
  • at {4} between cube and trip:   arccos[-sqrt(2/3)] = 144.735610°
  • at {4} between cube and cube:   135°
  • at {4} between cube and sirco:   90°
  • at {3} between sirco and trip:   90°
Face vector 48, 120, 100, 28
Confer
uniform relative:
sidpith   sodip
related segmentochora:
escupe   squacupe
blends:
shafipto
related CRFs:
dapabdi poxic
general polytopal classes:
Wythoffian polychora   segmentochora
External
links 		hedrondude   wikipedia   polytopewiki

As abstract polytope sircope is isomorphic to quercope, thereby replacing prograde trips by retrograde ones and sirco by querco.

When augmenting the 6 full symmetrical cubes of sircope by cubpies it results in dapabdi poxic. Then the thus introduced squippies would happen to be corealmic with the remaining (only prism symmetric) cubes and thus recombine into esquidpies.

The blend of 4 sircopes results in shafipto.


Incidence matrix according to Dynkin symbol

x x3o4x

. . . . | 48 |  1  2  2 |  2  2  1  2  1 | 1  2 1 1
--------+----+----------+----------------+---------
x . . . |  2 | 24  *  * |  2  2  0  0  0 | 1  2 1 0
. x . . |  2 |  * 48  * |  1  0  1  1  0 | 1  1 0 1
. . . x |  2 |  *  * 48 |  0  1  0  1  1 | 0  1 1 1
--------+----+----------+----------------+---------
x x . . |  4 |  2  2  0 | 24  *  *  *  * | 1  1 0 0
x . . x |  4 |  2  0  2 |  * 24  *  *  * | 0  1 1 0
. x3o . |  3 |  0  3  0 |  *  * 16  *  * | 1  0 0 1
. x . x |  4 |  0  2  2 |  *  *  * 24  * | 0  1 0 1
. . o4x |  4 |  0  0  4 |  *  *  *  * 12 | 0  0 1 1
--------+----+----------+----------------+---------
x x3o . ♦  6 |  3  6  0 |  3  0  2  0  0 | 8  * * *
x x . x ♦  8 |  4  4  4 |  2  2  0  2  0 | * 12 * *
x . o4x ♦  8 |  4  0  8 |  0  4  0  0  2 | *  * 6 *
. x3o4x ♦ 24 |  0 24 24 |  0  0  8 12  6 | *  * * 2

snubbed forms: x2x3o4s, s2x3o4s


x x3/2o4/3x

. .   .   . | 48 |  1  2  2 |  2  2  1  2  1 | 1  2 1 1
------------+----+----------+----------------+---------
x .   .   . |  2 | 24  *  * |  2  2  0  0  0 | 1  2 1 0
. x   .   . |  2 |  * 48  * |  1  0  1  1  0 | 1  1 0 1
. .   .   x |  2 |  *  * 48 |  0  1  0  1  1 | 0  1 1 1
------------+----+----------+----------------+---------
x x   .   . |  4 |  2  2  0 | 24  *  *  *  * | 1  1 0 0
x .   .   x |  4 |  2  0  2 |  * 24  *  *  * | 0  1 1 0
. x3/2o   . |  3 |  0  3  0 |  *  * 16  *  * | 1  0 0 1
. x   .   x |  4 |  0  2  2 |  *  *  * 24  * | 0  1 0 1
. .   o4/3x |  4 |  0  0  4 |  *  *  *  * 12 | 0  0 1 1
------------+----+----------+----------------+---------
x x3/2o   . ♦  6 |  3  6  0 |  3  0  2  0  0 | 8  * * *
x x   .   x ♦  8 |  4  4  4 |  2  2  0  2  0 | * 12 * *
x .   o4/3x ♦  8 |  4  0  8 |  0  4  0  0  2 | *  * 6 *
. x3/2o4/3x ♦ 24 |  0 24 24 |  0  0  8 12  6 | *  * * 2


x s3s4x

. demi( . . . ) | 48 |  1  1  2  1 |  1  2  1  1  1  2 | 1 1  2 1
----------------+----+-------------+-------------------+---------
x demi( . . . ) |  2 | 24  *  *  * |  1  2  1  0  0  0 | 1 1  2 0
. demi( . . x ) |  2 |  * 24  *  * |  1  0  0  0  1  1 | 0 1  1 1
. sefa( s3s . ) |  2 |  *  * 48  * |  0  1  0  1  0  1 | 1 0  1 1
. sefa( . s4x ) |  2 |  *  *  * 24 |  0  0  1  0  1  1 | 0 1  1 1
----------------+----+-------------+-------------------+---------
x demi( . . x ) |  4 |  2  2  0  0 | 12  *  *  *  *  * | 0 1  1 0
x sefa( s3s . ) |  4 |  2  0  2  0 |  * 24  *  *  *  * | 1 0  1 0
x sefa( . s4x ) |  4 |  2  0  0  2 |  *  * 12  *  *  * | 0 1  1 0
.       s3s .   |  3 |  0  0  3  0 |  *  *  * 16  *  * | 1 0  0 1
.       . s4x   |  4 |  0  2  0  2 |  *  *  *  * 12  * | 0 1  0 1
. sefa( s3s4x ) |  4 |  0  1  2  1 |  *  *  *  *  * 24 | 0 0  1 1
----------------+----+-------------+-------------------+---------
x       s3s .   ♦  6 |  3  0  6  0 |  0  3  0  2  0  0 | 8 *  * *
x       . s4x   ♦  8 |  4  4  0  4 |  2  0  2  0  2  0 | * 6  * *
x sefa( s3s4x ) ♦  8 |  4  2  4  2 |  1  2  1  0  0  2 | * * 12 *
.       s3s4x   ♦ 24 |  0 12 24 12 |  0  0  0  8  6 12 | * *  * 2


x2s3s4x

demi( . . . . ) | 48 |  1  1  2  1 |  1  1  1  2  1  2 | 1 1 1  2
----------------+----+-------------+-------------------+---------
demi( x . . . ) |  2 | 24  *  *  * |  1  0  0  2  1  0 | 1 1 0  2
demi( . . . x ) |  2 |  * 24  *  * |  1  0  1  0  0  1 | 0 1 1  1
sefa( . s3s . ) |  2 |  *  * 48  * |  0  1  0  1  0  1 | 1 0 1  1
sefa( . . s4x ) |  2 |  *  *  * 24 |  0  0  1  0  1  1 | 0 1 1  1
----------------+----+-------------+-------------------+---------
demi( x . . x ) |  4 |  2  2  0  0 | 12  *  *  *  *  * | 0 1 0  1
      . s3s .   |  3 |  0  0  3  0 |  * 16  *  *  *  * | 1 0 1  0
      . . s4x   |  4 |  0  2  0  2 |  *  * 12  *  *  * | 0 1 1  0
sefa( x2s3s . ) |  4 |  2  0  2  0 |  *  *  * 24  *  * | 1 0 0  1
sefa( x 2 s4x ) |  4 |  2  0  0  2 |  *  *  *  * 12  * | 0 1 0  1
sefa( . s3s4x ) |  4 |  0  1  2  1 |  *  *  *  *  * 24 | 0 0 1  1
----------------+----+-------------+-------------------+---------
      x2s3s .   ♦  6 |  3  0  6  0 |  0  2  0  3  0  0 | 8 * *  *
      x 2 s4x   ♦  8 |  4  4  0  4 |  2  0  2  0  2  0 | * 6 *  *
      . s3s4x   ♦ 24 |  0 12 24 12 |  0  8  6  0  0 12 | * * 2  *
sefa( x2s3s4x ) ♦  8 |  4  2  4  2 |  1  0  0  2  1  2 | * * * 12

starting figure: x x3x4x


xx3oo4xx&#x   → height = 1
(sirco || sirco)

o.3o.4o.    | 24  * |  2  2  1  0  0 | 1  2 1  2  2 0  0 0 | 1 1  2 1 0
.o3.o4.o    |  * 24 |  0  0  1  2  2 | 0  0 0  2  2 1  2 1 | 0 1  2 1 1
------------+-------+----------------+---------------------+-----------
x. .. ..    |  2  0 | 24  *  *  *  * | 1  1 0  1  0 0  0 0 | 1 1  1 0 0
.. .. x.    |  2  0 |  * 24  *  *  * | 0  1 1  0  1 0  0 0 | 1 0  1 1 0
oo3oo4oo&#x |  1  1 |  *  * 24  *  * | 0  0 0  2  2 0  0 0 | 0 1  2 1 0
.x .. ..    |  0  2 |  *  *  * 24  * | 0  0 0  1  0 1  1 0 | 0 1  1 0 1
.. .. .x    |  0  2 |  *  *  *  * 24 | 0  0 0  0  1 0  1 1 | 0 0  1 1 1
------------+-------+----------------+---------------------+-----------
x.3o. ..    |  3  0 |  3  0  0  0  0 | 8  * *  *  * *  * * | 1 1  0 0 0
x. .. x.    |  4  0 |  2  2  0  0  0 | * 12 *  *  * *  * * | 1 0  1 0 0
.. o.4x.    |  4  0 |  0  4  0  0  0 | *  * 6  *  * *  * * | 1 0  0 1 0
xx .. ..&#x |  2  2 |  1  0  2  1  0 | *  * * 24  * *  * * | 0 1  1 0 0
.. .. xx&#x |  2  2 |  0  1  2  0  1 | *  * *  * 24 *  * * | 0 0  1 1 0
.x3.o ..    |  0  3 |  0  0  0  3  0 | *  * *  *  * 8  * * | 0 1  0 0 1
.x .. .x    |  0  4 |  0  0  0  2  2 | *  * *  *  * * 12 * | 0 0  1 0 1
.. .o4.x    |  0  4 |  0  0  0  0  4 | *  * *  *  * *  * 6 | 0 0  0 1 1
------------+-------+----------------+---------------------+-----------
x.3o.4x.    ♦ 24  0 | 24 24  0  0  0 | 8 12 6  0  0 0  0 0 | 1 *  * * *
xx3oo ..&#x ♦  3  3 |  3  0  3  3  0 | 1  0 0  3  0 1  0 0 | * 8  * * *
xx .. xx&#x ♦  4  4 |  2  2  4  2  2 | 0  1 0  2  2 0  1 0 | * * 12 * *
.. oo4xx&#x ♦  4  4 |  0  4  4  0  4 | 0  0 1  0  4 0  0 1 | * *  * 6 *
.x3.o4.x    ♦  0 24 |  0  0  0 24 24 | 0  0 0  0  0 8 12 6 | * *  * * 1


xxxx xxxx4oxxo&#xt   → outer heights = 1/sqrt(2) = 0.707107
                       inner height = 1
(cube || pseudo op || pseudo op || cube)

o... o...4o...     | 8  *  * * | 1 2  2 0 0 0  0 0 0 0  0 0 0 | 2 1 2 2 1 0 0 0 0 0 0 0 0 0 0 0 0 | 1 2 1 1 0 0 0 0 0
.o.. .o..4.o..     | * 16  * * | 0 0  1 1 1 1  1 0 0 0  0 0 0 | 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 | 0 1 1 1 1 1 0 0 0
..o. ..o.4..o.     | *  * 16 * | 0 0  0 0 0 0  1 1 1 1  1 0 0 | 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 | 0 0 0 1 1 1 1 1 0
...o ...o4...o     | *  *  * 8 | 0 0  0 0 0 0  0 0 0 0  2 1 2 | 0 0 0 0 0 0 0 0 0 0 0 0 2 2 1 2 1 | 0 0 0 1 0 0 2 1 1
-------------------+-----------+------------------------------+-----------------------------------+------------------
x... .... ....     | 2  0  0 0 | 4 *  * * * *  * * * *  * * * | 2 0 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 1 2 1 0 0 0 0 0 0
.... x... ....     | 2  0  0 0 | * 8  * * * *  * * * *  * * * | 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 | 1 1 0 1 0 0 0 0 0
oo.. oo..4oo..&#x  | 1  1  0 0 | * * 16 * * *  * * * *  * * * | 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 | 0 1 1 1 0 0 0 0 0
.x.. .... ....     | 0  2  0 0 | * *  * 8 * *  * * * *  * * * | 0 0 1 0 0 1 1 1 0 0 0 0 0 0 0 0 0 | 0 1 1 0 1 1 0 0 0
.... .x.. ....     | 0  2  0 0 | * *  * * 8 *  * * * *  * * * | 0 0 0 1 0 1 0 0 1 0 0 0 0 0 0 0 0 | 0 1 0 1 1 0 0 0 0
.... .... .x..     | 0  2  0 0 | * *  * * * 8  * * * *  * * * | 0 0 0 0 1 0 1 0 0 1 0 0 0 0 0 0 0 | 0 0 1 1 0 1 0 0 0
.oo. .oo.4.oo.&#x  | 0  1  1 0 | * *  * * * * 16 * * *  * * * | 0 0 0 0 0 0 0 1 1 1 0 0 0 0 0 0 0 | 0 0 0 1 1 1 0 0 0
..x. .... ....     | 0  0  2 0 | * *  * * * *  * 8 * *  * * * | 0 0 0 0 0 0 0 1 0 0 1 1 1 0 0 0 0 | 0 0 0 0 1 1 1 1 0
.... ..x. ....     | 0  0  2 0 | * *  * * * *  * * 8 *  * * * | 0 0 0 0 0 0 0 0 1 0 1 0 0 1 0 0 0 | 0 0 0 1 1 0 1 0 0
.... .... ..x.     | 0  0  2 0 | * *  * * * *  * * * 8  * * * | 0 0 0 0 0 0 0 0 0 1 0 1 0 0 1 0 0 | 0 0 0 1 0 1 0 1 0
..oo ..oo4..oo&#x  | 0  0  1 1 | * *  * * * *  * * * * 16 * * | 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 0 0 | 0 0 0 1 0 0 1 1 0
...x .... ....     | 0  0  0 2 | * *  * * * *  * * * *  * 4 * | 0 0 0 0 0 0 0 0 0 0 0 0 2 0 0 2 0 | 0 0 0 0 0 0 2 1 1
.... ...x ....     | 0  0  0 2 | * *  * * * *  * * * *  * * 8 | 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 | 0 0 0 1 0 0 1 0 1
-------------------+-----------+------------------------------+-----------------------------------+------------------
x... x... ....     | 4  0  0 0 | 2 2  0 0 0 0  0 0 0 0  0 0 0 | 4 * * * * * * * * * * * * * * * * | 1 1 0 0 0 0 0 0 0
.... x...4o...     | 4  0  0 0 | 0 4  0 0 0 0  0 0 0 0  0 0 0 | * 2 * * * * * * * * * * * * * * * | 1 0 0 1 0 0 0 0 0
xx.. .... ....&#x  | 2  2  0 0 | 1 0  2 1 0 0  0 0 0 0  0 0 0 | * * 8 * * * * * * * * * * * * * * | 0 1 1 0 0 0 0 0 0
.... xx.. ....&#x  | 2  2  0 0 | 0 1  2 0 1 0  0 0 0 0  0 0 0 | * * * 8 * * * * * * * * * * * * * | 0 1 0 1 0 0 0 0 0
.... .... ox..&#x  | 1  2  0 0 | 0 0  2 0 0 1  0 0 0 0  0 0 0 | * * * * 8 * * * * * * * * * * * * | 0 0 1 1 0 0 0 0 0
.x.. .x.. ....     | 0  4  0 0 | 0 0  0 2 2 0  0 0 0 0  0 0 0 | * * * * * 4 * * * * * * * * * * * | 0 1 0 0 1 0 0 0 0
.x.. .... .x..     | 0  4  0 0 | 0 0  0 2 0 2  0 0 0 0  0 0 0 | * * * * * * 4 * * * * * * * * * * | 0 0 1 0 0 1 0 0 0
.xx. .... ....&#x  | 0  2  2 0 | 0 0  0 1 0 0  2 1 0 0  0 0 0 | * * * * * * * 8 * * * * * * * * * | 0 0 0 0 1 1 0 0 0
.... .xx. ....&#x  | 0  2  2 0 | 0 0  0 0 1 0  2 0 1 0  0 0 0 | * * * * * * * * 8 * * * * * * * * | 0 0 0 1 1 0 0 0 0
.... .... .xx.&#x  | 0  2  2 0 | 0 0  0 0 0 1  2 0 0 1  0 0 0 | * * * * * * * * * 8 * * * * * * * | 0 0 0 1 0 1 0 0 0
..x. ..x. ....     | 0  0  4 0 | 0 0  0 0 0 0  0 2 2 0  0 0 0 | * * * * * * * * * * 4 * * * * * * | 0 0 0 0 1 0 1 0 0
..x. .... ..x.     | 0  0  4 0 | 0 0  0 0 0 0  0 2 0 2  0 0 0 | * * * * * * * * * * * 4 * * * * * | 0 0 0 0 0 1 0 1 0
..xx .... ....&#x  | 0  0  2 2 | 0 0  0 0 0 0  0 1 0 0  2 1 0 | * * * * * * * * * * * * 8 * * * * | 0 0 0 0 0 0 1 1 0
.... ..xx ....&#x  | 0  0  2 2 | 0 0  0 0 0 0  0 0 1 0  2 0 1 | * * * * * * * * * * * * * 8 * * * | 0 0 0 1 0 0 1 0 0
.... .... ..xo&#x  | 0  0  2 1 | 0 0  0 0 0 0  0 0 0 1  2 0 0 | * * * * * * * * * * * * * * 8 * * | 0 0 0 1 0 0 0 1 0
...x ...x ....     | 0  0  0 4 | 0 0  0 0 0 0  0 0 0 0  0 2 2 | * * * * * * * * * * * * * * * 4 * | 0 0 0 0 0 0 1 0 1
.... ...x4...o     | 0  0  0 4 | 0 0  0 0 0 0  0 0 0 0  0 0 4 | * * * * * * * * * * * * * * * * 2 | 0 0 0 1 0 0 0 0 1
-------------------+-----------+------------------------------+-----------------------------------+------------------
x... x...4o...     ♦ 8  0  0 0 | 4 8  0 0 0 0  0 0 0 0  0 0 0 | 4 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 | 1 * * * * * * * *
xx.. xx.. ....&#x  ♦ 4  4  0 0 | 2 2  4 2 2 0  0 0 0 0  0 0 0 | 1 0 2 2 0 1 0 0 0 0 0 0 0 0 0 0 0 | * 4 * * * * * * *
xx.. .... ox..&#x  ♦ 2  4  0 0 | 1 0  4 2 0 2  0 0 0 0  0 0 0 | 0 0 2 0 2 0 1 0 0 0 0 0 0 0 0 0 0 | * * 4 * * * * * *
.... xxxx4oxxo&#xt ♦ 4  8  8 4 | 0 4  8 0 4 4  8 0 4 4  8 0 4 | 0 1 0 4 4 0 0 0 4 4 0 0 0 4 4 0 1 | * * * 2 * * * * *
.xx. .xx. ....&#x  ♦ 0  4  4 0 | 0 0  0 2 2 0  4 2 2 0  0 0 0 | 0 0 0 0 0 1 0 2 2 0 1 0 0 0 0 0 0 | * * * * 4 * * * *
.xx. .... .xx.&#x  ♦ 0  4  4 0 | 0 0  0 2 0 2  4 2 0 2  0 0 0 | 0 0 0 0 0 0 1 2 0 2 0 1 0 0 0 0 0 | * * * * * 4 * * *
..xx ..xx ....&#x  ♦ 0  0  4 4 | 0 0  0 0 0 0  0 2 2 0  4 2 2 | 0 0 0 0 0 0 0 0 0 0 1 0 2 2 0 1 0 | * * * * * * 4 * *
..xx .... ..xo&#x  ♦ 0  0  4 2 | 0 0  0 0 0 0  0 2 0 2  4 1 0 | 0 0 0 0 0 0 0 0 0 0 0 1 2 0 2 0 0 | * * * * * * * 4 *
...x ...x4...o     ♦ 0  0  0 8 | 0 0  0 0 0 0  0 0 0 0  0 4 8 | 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4 2 | * * * * * * * * 1

or
o... o...4o...    & | 16  * | 1  2  2  0  0  0  0 | 2 1  2  2  1 0 0 0 0 0 | 1 2 1 1 0 0
.o.. .o..4.o..    & |  * 32 | 0  0  1  1  1  1  1 | 0 0  1  1  1 1 1 1 1 1 | 0 1 1 1 1 1
--------------------+-------+---------------------+------------------------+------------
x... .... ....    & |  2  0 | 8  *  *  *  *  *  * | 2 0  2  0  0 0 0 0 0 0 | 1 2 1 0 0 0
.... x... ....    & |  2  0 | * 16  *  *  *  *  * | 1 1  0  1  0 0 0 0 0 0 | 1 1 0 1 0 0
oo.. oo..4oo..&#x & |  1  1 | *  * 32  *  *  *  * | 0 0  1  1  1 0 0 0 0 0 | 0 1 1 1 0 0
.x.. .... ....    & |  0  2 | *  *  * 16  *  *  * | 0 0  1  0  0 1 1 1 0 0 | 0 1 1 0 1 1
.... .x.. ....    & |  0  2 | *  *  *  * 16  *  * | 0 0  0  1  0 1 0 0 1 0 | 0 1 0 1 1 0
.... .... .x..    & |  0  2 | *  *  *  *  * 16  * | 0 0  0  0  1 0 1 0 0 1 | 0 0 1 1 0 1
.oo. .oo.4.oo.&#x   |  0  2 | *  *  *  *  *  * 16 | 0 0  0  0  0 0 0 1 1 1 | 0 0 0 1 1 1
--------------------+-------+---------------------+------------------------+------------
x... x... ....    & |  4  0 | 2  2  0  0  0  0  0 | 8 *  *  *  * * * * * * | 1 1 0 0 0 0
.... x...4o...    & |  4  0 | 0  4  0  0  0  0  0 | * 4  *  *  * * * * * * | 1 0 0 1 0 0
xx.. .... ....&#x & |  2  2 | 1  0  2  1  0  0  0 | * * 16  *  * * * * * * | 0 1 1 0 0 0
.... xx.. ....&#x & |  2  2 | 0  1  2  0  1  0  0 | * *  * 16  * * * * * * | 0 1 0 1 0 0
.... .... ox..&#x & |  1  2 | 0  0  2  0  0  1  0 | * *  *  * 16 * * * * * | 0 0 1 1 0 0
.x.. .x.. ....    & |  0  4 | 0  0  0  2  2  0  0 | * *  *  *  * 8 * * * * | 0 1 0 0 1 0
.x.. .... .x..    & |  0  4 | 0  0  0  2  0  2  0 | * *  *  *  * * 8 * * * | 0 0 1 0 0 1
.xx. .... ....&#x   |  0  4 | 0  0  0  2  0  0  2 | * *  *  *  * * * 8 * * | 0 0 0 0 1 1
.... .xx. ....&#x   |  0  4 | 0  0  0  0  2  0  2 | * *  *  *  * * * * 8 * | 0 0 0 1 1 0
.... .... .xx.&#x   |  0  4 | 0  0  0  0  0  2  2 | * *  *  *  * * * * * 8 | 0 0 0 1 0 1
--------------------+-------+---------------------+------------------------+------------
x... x...4o...    & ♦  8  0 | 4  8  0  0  0  0  0 | 4 2  0  0  0 0 0 0 0 0 | 2 * * * * *
xx.. xx.. ....&#x & ♦  4  4 | 2  2  4  2  2  0  0 | 1 0  2  2  0 1 0 0 0 0 | * 8 * * * *
xx.. .... ox..&#x & ♦  2  4 | 1  0  4  2  0  2  0 | 0 0  2  0  2 0 1 0 0 0 | * * 8 * * *
.... xxxx4oxxo&#xt  ♦  8 16 | 0  8 16  0  8  8  8 | 0 2  0  8  8 0 0 0 4 4 | * * * 2 * *
.xx. .xx. ....&#x   ♦  0  8 | 0  0  0  4  4  0  4 | 0 0  0  0  0 2 0 2 2 0 | * * * * 4 *
.xx. .... .xx.&#x   ♦  0  8 | 0  0  0  4  0  4  4 | 0 0  0  0  0 0 2 2 0 2 | * * * * * 4


xxx wxx xwx xxw&#zx   → height = 0
(tegum sum of 3 orthogonal (w,x,x,x)-teses.)

o.. o.. o.. o..     | 16  *  * | 1 1 1  1  1 0 0 0  0 0 0 0 | 1 1 1 1 1 1 1  1 0 0 0 0 0 0 0 0 | 1 1 1 1 1 0 0 0
.o. .o. .o. .o.     |  * 16  * | 0 0 0  1  0 1 1 1  1 0 0 0 | 0 0 0 1 1 0 0  1 1 1 1 1 1 0 0 0 | 0 1 0 1 1 1 1 0
..o ..o ..o ..o     |  *  * 16 | 0 0 0  0  1 0 0 0  1 1 1 1 | 0 0 0 0 0 1 1  1 0 0 0 1 1 1 1 1 | 0 0 1 1 1 0 1 1
--------------------+----------+----------------------------+----------------------------------+----------------
x.. ... ... ...     |  2  0  0 | 8 * *  *  * * * *  * * * * | 1 1 0 1 0 1 0  0 0 0 0 0 0 0 0 0 | 1 1 1 1 0 0 0 0
... ... x.. ...     |  2  0  0 | * 8 *  *  * * * *  * * * * | 1 0 1 0 0 0 1  0 0 0 0 0 0 0 0 0 | 1 0 1 0 1 0 0 0
... ... ... x..     |  2  0  0 | * * 8  *  * * * *  * * * * | 0 1 1 0 1 0 0  0 0 0 0 0 0 0 0 0 | 1 1 0 0 1 0 0 0
oo. oo. oo. oo.&#x  |  1  1  0 | * * * 16  * * * *  * * * * | 0 0 0 1 1 0 0  1 0 0 0 0 0 0 0 0 | 0 1 0 1 1 0 0 0
o.o o.o o.o o.o&#x  |  1  0  1 | * * *  * 16 * * *  * * * * | 0 0 0 0 0 1 1  1 0 0 0 0 0 0 0 0 | 0 0 1 1 1 0 0 0
.x. ... ... ...     |  0  2  0 | * * *  *  * 8 * *  * * * * | 0 0 0 1 0 0 0  0 1 1 0 1 0 0 0 0 | 0 1 0 1 0 1 1 0
... .x. ... ...     |  0  2  0 | * * *  *  * * 8 *  * * * * | 0 0 0 0 0 0 0  0 1 0 1 0 1 0 0 0 | 0 0 0 0 1 1 1 0
... ... ... .x.     |  0  2  0 | * * *  *  * * * 8  * * * * | 0 0 0 0 1 0 0  0 0 1 1 0 0 0 0 0 | 0 1 0 0 1 1 0 0
.oo .oo .oo .oo&#x  |  0  1  1 | * * *  *  * * * * 16 * * * | 0 0 0 0 0 0 0  1 0 0 0 1 1 0 0 0 | 0 0 0 1 1 0 1 0
..x ... ... ...     |  0  0  2 | * * *  *  * * * *  * 8 * * | 0 0 0 0 0 1 0  0 0 0 0 1 0 1 1 0 | 0 0 1 1 0 0 1 1
... ..x ... ...     |  0  0  2 | * * *  *  * * * *  * * 8 * | 0 0 0 0 0 0 0  0 0 0 0 0 1 1 0 1 | 0 0 0 0 1 0 1 1
... ... ..x ...     |  0  0  2 | * * *  *  * * * *  * * * 8 | 0 0 0 0 0 0 1  0 0 0 0 0 0 0 1 1 | 0 0 1 0 1 0 0 1
--------------------+----------+----------------------------+----------------------------------+----------------
x.. ... x.. ...     |  4  0  0 | 2 2 0  0  0 0 0 0  0 0 0 0 | 4 * * * * * *  * * * * * * * * * | 1 0 1 0 0 0 0 0
x.. ... ... x..     |  4  0  0 | 2 0 2  0  0 0 0 0  0 0 0 0 | * 4 * * * * *  * * * * * * * * * | 1 1 0 0 0 0 0 0
... ... x.. x..     |  4  0  0 | 0 2 2  0  0 0 0 0  0 0 0 0 | * * 4 * * * *  * * * * * * * * * | 1 0 0 0 1 0 0 0
xx. ... ... ...&#x  |  2  2  0 | 1 0 0  2  0 1 0 0  0 0 0 0 | * * * 8 * * *  * * * * * * * * * | 0 1 0 1 0 0 0 0
... ... ... xx.&#x  |  2  2  0 | 0 0 1  2  0 0 0 1  0 0 0 0 | * * * * 8 * *  * * * * * * * * * | 0 1 0 0 1 0 0 0
x.x ... ... ...&#x  |  2  0  2 | 1 0 0  0  2 0 0 0  0 1 0 0 | * * * * * 8 *  * * * * * * * * * | 0 0 1 1 0 0 0 0
... ... x.x ...&#x  |  2  0  2 | 0 1 0  0  2 0 0 0  0 0 0 1 | * * * * * * 8  * * * * * * * * * | 0 0 1 0 1 0 0 0
ooo ooo ooo ooo&#x  |  1  1  1 | 0 0 0  1  1 0 0 0  1 0 0 0 | * * * * * * * 16 * * * * * * * * | 0 0 0 1 1 0 0 0
.x. .x. ... ...     |  0  4  0 | 0 0 0  0  0 2 2 0  0 0 0 0 | * * * * * * *  * 4 * * * * * * * | 0 0 0 0 0 1 1 0
.x. ... ... .x.     |  0  4  0 | 0 0 0  0  0 2 0 2  0 0 0 0 | * * * * * * *  * * 4 * * * * * * | 0 1 0 0 0 1 0 0
... .x. ... .x.     |  0  4  0 | 0 0 0  0  0 0 2 2  0 0 0 0 | * * * * * * *  * * * 4 * * * * * | 0 0 0 0 1 1 0 0
.xx ... ... ...&#x  |  0  2  2 | 0 0 0  0  0 1 0 0  2 1 0 0 | * * * * * * *  * * * * 8 * * * * | 0 0 0 1 0 0 1 0
... .xx ... ...&#x  |  0  2  2 | 0 0 0  0  0 0 1 0  2 0 1 0 | * * * * * * *  * * * * * 8 * * * | 0 0 0 0 1 0 1 0
..x ..x ... ...     |  0  0  4 | 0 0 0  0  0 0 0 0  0 2 2 0 | * * * * * * *  * * * * * * 4 * * | 0 0 0 0 0 0 1 1
..x ... ..x ...     |  0  0  4 | 0 0 0  0  0 0 0 0  0 2 0 2 | * * * * * * *  * * * * * * * 4 * | 0 0 1 0 0 0 0 1
... ..x ..x ...     |  0  0  4 | 0 0 0  0  0 0 0 0  0 0 2 2 | * * * * * * *  * * * * * * * * 4 | 0 0 0 0 1 0 0 1
--------------------+----------+----------------------------+----------------------------------+----------------
x.. ... x.. x..     ♦  8  0  0 | 4 4 4  0  0 0 0 0  0 0 0 0 | 2 2 2 0 0 0 0  0 0 0 0 0 0 0 0 0 | 2 * * * * * * *
xx. ... ... xx.&#x  ♦  4  4  0 | 2 0 2  4  0 2 0 2  0 0 0 0 | 0 1 0 2 2 0 0  0 0 1 0 0 0 0 0 0 | * 4 * * * * * *
x.x ... x.x ...&#x  ♦  4  0  4 | 2 2 0  0  4 0 0 0  0 2 0 2 | 1 0 0 0 0 2 2  0 0 0 0 0 0 0 1 0 | * * 4 * * * * *
xxx ... ... ...&#x  ♦  2  2  2 | 1 0 0  2  2 1 0 0  2 1 0 0 | 0 0 0 1 0 1 0  2 0 0 0 1 0 0 0 0 | * * * 8 * * * *
... wxx xwx xxw&#zx ♦  8  8  8 | 0 4 4  8  8 0 4 4  8 0 4 4 | 0 0 2 0 4 0 4  8 0 0 2 0 4 0 0 2 | * * * * 2 * * *
.x. .x. ... .x.     ♦  0  8  0 | 0 0 0  0  0 4 4 4  0 0 0 0 | 0 0 0 0 0 0 0  0 2 2 2 0 0 0 0 0 | * * * * * 2 * *
.xx .xx ... ...&#x  ♦  0  4  4 | 0 0 0  0  0 2 2 0  4 2 2 0 | 0 0 0 0 0 0 0  0 1 0 0 2 2 1 0 0 | * * * * * * 4 *
..x ..x ..x ...     ♦  0  0  8 | 0 0 0  0  0 0 0 0  0 4 4 4 | 0 0 0 0 0 0 0  0 0 0 0 0 0 2 2 2 | * * * * * * * 2

© 2004-2025
top of page
